RUGGED PANEL PC

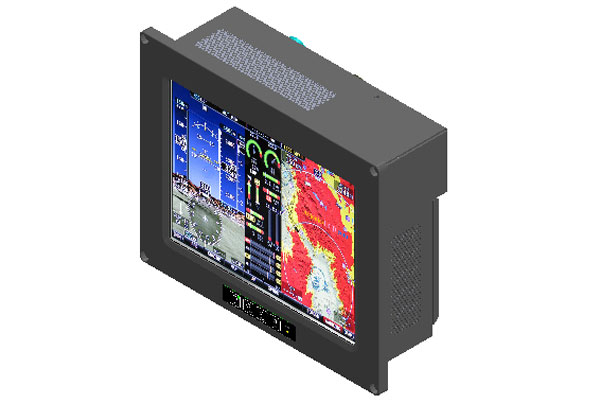

RWS 121RTS : 12.1" Rugged Panel PC DOWNLOAD

SPECIFICATIONS :
»  LCD Screen size : 12.1" LCD with LED backlight
»  Integrated 5 wire resistive touch screen
»  Aspect Ratio : 4:3
»  Resolution : 1024x768 (XGA Resolution)
»  Brightness : 400 Cd/m2 or better (High Brightness and Sun readable Option available).
»  Viewing Angle : 1600 ( H) / 1600 (V)
»  Contrast Ratio : 700 : 1
»  Display Color : 16.2 M
»  Active Display Area : 245.76 mm X 184.32mm
»  Dot Pitch : 0.24 (H) X 0.24 (V) mm.
»  Hardware : Based on Intel Core i3 @ 2.0 Ghz processor or above.
»  Memory : 4 GBD DR3 1066Mhz RAM (Max).
»  Ethernet : 2 x 10/1000/1000 Mbps.
»  USB : 4 nos.
»  RS 232 : 2nos.
»  Storage : 1 TB Hard Disk Drive (SSD Option available).
»  Power Input : Input Supply : 230V AC, 50 Hz (DC Input Option available).
»  MIL-C 38999 series III connector for Power Input.
»  Ethernet ports : 2 nos RJ45.
»  USB port : 4 nos Type A.
»  RS 232 : 2 x DB9M.
»  Windows 7 Professional with media and manual.

OTHER FEATURES :
»  All fasteners : Non-corrosive Stainless steel of Marine Grade.
»  Internal wiring : PTFE wires with ferrule marketing Matching Connectors and dust caps for all I/O.
»  Material for Enclosure and monitoring Hardware shall comply with IS 736/737-1986, Aluminium Alloy.
»  All Aluminium parts shall be chromate converted and Painted.

ENVIRONMENTAL :
»  Operating Temperature (Low) : -2.0o C
»  Operating Temperature (High) : +55o C
»  Storage Temperature (Low) :-30o C
»  Storage Temperature (High) : +70o C
»  Humidity : 95% RH Non condensing @ 40o C
»  Shock : 15g, 11msec (half sine wave)
»  Altitude : Upto 4000m
»  Vibration : 1.5g pk-pk, 8~500 Hz
»  EMI/EMC : As per MIL - 461F
