RUGGED PANEL PC

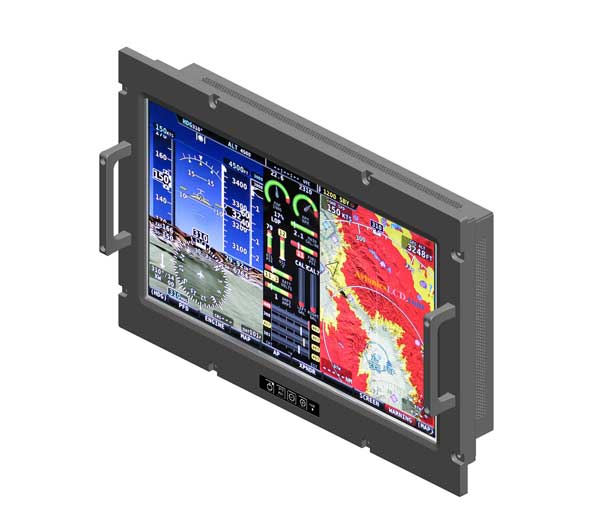

RWS 215 : 21.5" Rugged Panel PC DOWNLOAD

SPECIFICATIONS :
»  Single Board Computer with Socket G2 for Intel 3rd Generation 22nm mobile Processor
»  System Chipset : Intel QM77 or better
»  BIOS : UEFI BIOS
»  System Memory : 2 x 204 pin 1066/1333/1600 MHz dual channel DDR3
    SDRAM SO-DIMMs supported(maximum 16GB)

Ethernet :
»  LAN 1 : Intel 82583V PCIe controller
»  LAN 2 : Intel 82579 PHY with Intel AMT 8.0 support
»  LAN 3 : Realtek RTL811E Gbe Controller by external PCI Express mini Module.

I/O Interface :
»  4 x USB 3.0
»  4 x USB 2.0
»  2 x RS 232
»  1 x RS -422/485

»  2 x SATA 3 Gb/s and 2 x SATA 6Gb/s with RAID 0/1/5/10
»  Audio : Realtek ALC892 HD codec
»  Watchdog Timer : Software programmable supports 1~255 sec. system reset
»  21.5" WUXGA ( 1920 x 1080) LCD Display
»  Active Screen: 21.5" Diagonal
»  Active Display Area : 476.64 (H) x 268.11 (V) mm
»  Resolution : 1920 x 1080
»  Pixel Pitch : 0.248 (H) x 0.248 (V)
»  Brightness : 250 cd/m2
»  Viewing Angle : 􀁲85°H & 􀁲80°V
»  Resistive Touch Screen
»  Power Supply : 90-264VAC, 50 Hz
»  Power Consumption 􀂎200W

Accessories :
1 x Intel Core i5 Processor @ 2.5 Ghz or above
1 x 4GB DDRIII RAM
1 x 120 GB SSD
1 x Windows XP Operating System with media

Environmental Specifications ( As per IEC 60945 Std/ IEC 60092-504 )
»  High Temperature : +55°C ( As per IEC 60068-2-2)
»  Low Temperature : -10°C (As per IEC 60068-2-1)
»  Humidity : 95% RH Non condensing @ 40°C ( As per IEC 60068-2-3)
»  Vibration : 5~13.2 Hz, Amplitude 1.0mm (peak value)
»  13.2 to 100 Hz, 0.7g Acceleration Amplitude ( As per IEC 60068-2-6)

EMI/EMC :
»  Conducted Emission ( As per CISPR 16-1 & 16-2 )
»  Radiated Emission (As per CISPR 16-1 & 16-2)
»  Conducted Susceptibility Burst & Fast Transients ( As per IEC 61000-4-4 )
»  ESD Discharge (As per IEC 61000-4-2)
»  Conducted Susceptibility Surge & Slow Transients (As per IEC 61000-4-5)
»  Conducted Susceptibility, Low Frequency (As per IEC 60533)
»  Conducted Susceptibility, Radio Frequency (As per IEC 61000-4-6 )
»  Conducted Susceptibility, Radiated Susceptibility (As per IEC 61000-4-3)
