RUGGED PORTABLE COMPUTERS

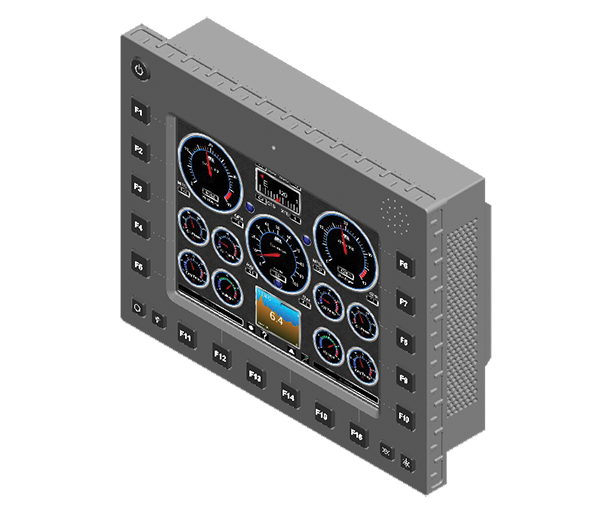

VCDU: 8.4” vehicle control & display unit : DOWNLOAD

SPECIFICATIONS :
Display Features
»  Display Size : 8.4” XGA LCD Display
»  Display Resolution : 1024x768
»  No of Colors : 16.7 Million
»  Viewing Area : 170.496mm(H)x127.872mm(V)
»  Pixel Pitch : 0.1665mm(H) x 0.1665mm(V)
»  Pixel Arrangement : RGB Vertical stripe
»  Viewing Angle : Left/Right 850,Top 850,Down 850
»  Contrast Ratio : 400:1
»  Response Time : 22 ms
»  High Brightness for Sun readability
»  Wide dimming ratio for day and night operation
»  Compliant with NVIS goggles
»  NVIS Compliant as per MIL-STD-3009 Class B Compliant
»  Day mode surface luminance of Max 686 cd/m2 and Min 0.314 cd/m2
»  Night mode or NVIS luminance of Max : 3.43 cd/m2
»  Switch selection between Day mode for use in day conditions and Night mode( NVIS Compatible)
»  5 Wire Resistive Touch Screen optically bonded to Anti glare , Anti Reflective Micromesh Filter for EMI Compliance

Processor:
»  Built in Multifunction Mother Board with Intel 22nm quad-core Celeron Processor @ 1.6 Ghz or above
Inputs :
»  4x Analog Input Channels: CCIR Standard Video
»  1x DVI Input ( Optional)
»  1x Audio Input
»  4 Digital Inputs
Outputs :
»  1x Video Output
»  1x Audio Output
»  4 Digital Outputs
Communication Interfaces
»  2x CAN Bus 2.0B (J1939)
»  2x Gbe Ethernet
»  3x RS 232/1 x RS422/485
»  5x USB 2.0 ports
»  1x 12 channel GPS interface with external antenna port

»  Programmable Function Keys: 16 Keys + Brightness Control Keys + On/Off key, Day/Night mode for the display
»  Graphics interface supports DX 11.1, OpenGL 4.2, Open CL 1.2 to support advanced graphics options like Cropping, Tiling, Scaling & alpha blending functions
»  Military 38999 connectors for Video input, Ethernet, GPIO, CAN , RS232/422 channels
»   Input Voltage: 18~32V DC (nominal 24V) with MIL 1275D protection for vehicle applications
»  Operating System : WES 7 (Windows embedded standard 7) or Windows 7 professional
»  Power Consumption : 60W Approximately
»  Dimension : 250mm (W)x 200mm(H) x 65mm(D)
»  Weight : Around 6 kgs

»  Environmental (As per MIL-STD-810F/JSS 55555:2000 , Revision 2 – Class L2H)
   •  Operating Temperature (High) : +55°C
   •  Operating Temperature (Low) : -20°C
   •  Storage Temperature (High) : +70°C
   •  Storage Temperature (Low) : -30°C
   •  Humidity : 95% RH non-condensing @ 40°C
   •  Vibration : Class L2H : 5 ~8 Hz: Constant displacement ± 6mm
                          8 ~500 Hz: 15 m/sec2 constant acceleration
   •  Shock : 20G , 11msec Half sine pulse (Test No 24 - truck mounted equipment)
   •  Protection : IP 65 on display front side.
   •  Altitude : 15,000 feet ( Test No 3 )
   •  EMI/EMC : As per MIL-461F ( Applicable for Equipment installed in Ground , Army Platform Equipment )
