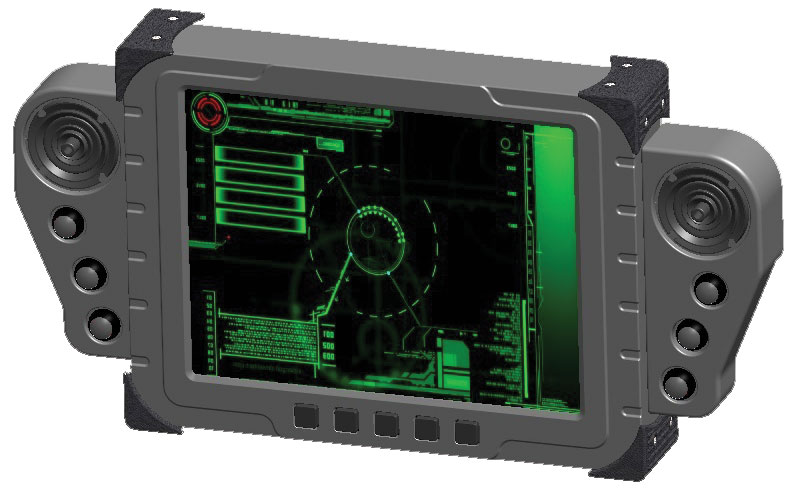

CDU 104 : 10.4” Rugged Control & Display Unit consisting of: DOWNLOAD

SPECIFICATIONS :
»  Single board computer with 5th Generation Intel Core i7-5650U CPU
»  8GB DDR-3L RAM
»  4 x RS 232, 1 x RS232/RS422/RS485
»  4 x USB 2.0, 2 x USB 3.0
»  2 x SATA 3.0 with RAID 0,1 support
»  Built-in RTC
»  Programmable 8 bit GPIO
»  On-board dual Giga LAN port via i210-AT and i218-LM
»  Built-in watch dog timer
»  User expansion capability via 2 x MiniPCIe slots
»  On-board HD Audio via ALC 888
»  10.4" LCD Display with 1024 x 768 LCD resolution
»  16.7 Mio Colors
»  Pixel pitch: 0.2055mm(H) x 0.2055mm (V) »  Brightness: 600 Cd/m2 or above ( Sun Readable)
»  Viewing Angle: L/R ± 850, U/D ± 850
»  1 x 256GB Solid State MLC Drive
»  1 x Fingertip joystick M11L6C1M on Right Side
»  1 x Fingertip joystick M21L0C1M on Left Side
»  Power 19 V DC input (Max 24 V DC)
»  External power adapter ( AC input to 19 V DC)
»  Built-in Li-ION smart battery with level-3 charger
»  User defined keyswitches on both sides
»  Water sealed Fisher connector for Power, Ethernet & USB

Environmental Specifications :
»  High Temperature (Operational ) : +55°C
»  Low Temperature (Operational) : -30°C
»  High Temperature (Storage ) : +70°C
»  Low Temperature (Storage) : -30°C
»  Humidity : 95 % RH (Non Condensing @ 400C)
»  Vibration : 5 ~ 8 Hz +6mm constant displacement
                       8 to 500 Hz +19.6m/s² constant acceleration
»  Shock : 20 g , 11 msec
»  EMI/EMC : As per MIL-STD-461F ( Equipment installed in Ground Army Platforms)
