RUGGED MULTI FUNCTION DISPLAYS

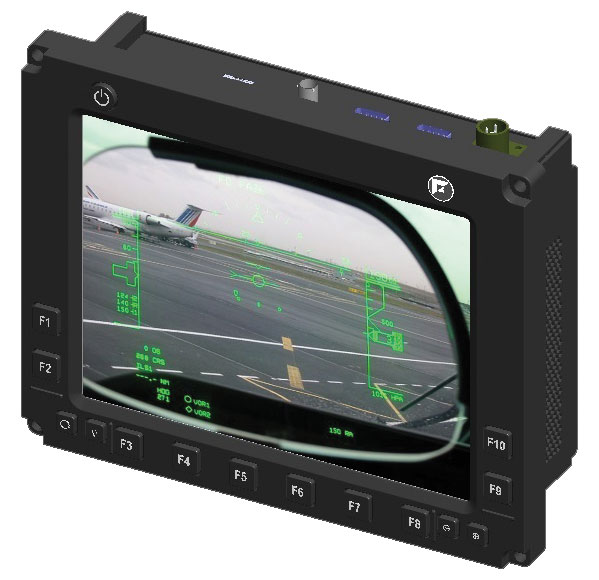

FLD 104 DCGR: 10.4” Rugged LCD Display
with Graphics and Alphanumeric overlay facility DOWNLOAD

SPECIFICATIONS :
Display Features
» Display Size : 10.4 “
» Display Resolution : 1024 x 768
» No of Colors : 16.7 m ( 8 bit/color)
» Viewing Area : 210.4mm(H) x 157.8mm (V)
» Pixel Pitch : 0.2055mm(H) x 0.2055mm(V)
» Pixel Arrangement : RGB Vertical stripe
» Viewing Angle : Left/Right 850/850,Top 850,Down 850
» Contrast Ratio : 600:1
» Wide Dimming Ratio
» Response Time : 12 ms
» LCD Brightness : 500 cd/m2 or above
» Mother Board with low power, long road map
» Intel Core i7 5th Generation Processor @ 2.2 Ghz or above
» 8 GB DDR3 RAM
» 64 GB Solid State Disk Drive
» WES 7 Operating System

Video Inputs:
» 1 x HDMI or DVI Input
» Audio input : Embedded HDMI
» Resolution : Max input resolution : 1080p60
» Max Resolution captured : 1080p30
» VESA Resolution supported
» Captured Video output : H.264
» RAW Video (YU12 4 :2:0)
» Raw Video Format : YUY2
» Upto 4x Composite Video PAL/NTSC Input
» Video Processing : Software compression
» Video Engine : 1 x Conexant CX25880
» Input Resolution & Frame Rate :
      NTSC :
      720x576,720x480,720x288,720x240
      352x240,320x240,160x120

      PAL
      720x576,720x480,720x288,720x248
      352x288,352x240,320x240, 160x120

» Frame Rate : NTSC : 120fps , PAL : 100 fps
 • Customised Programmable Function Keys + Brightness Control Keys + On/Off key on the front facia
 • Graphics interface supports DX 11.1, Open CL 1.2 , OpenGL 3.2 to support advanced graphics options like
   Cropping, Tiling, Scaling & alpha blending functions
 • Input Voltage: 24V DC ( 10~36V DC Range , Meets MIL-STD-1275D) through MIL-C-38999 connector
