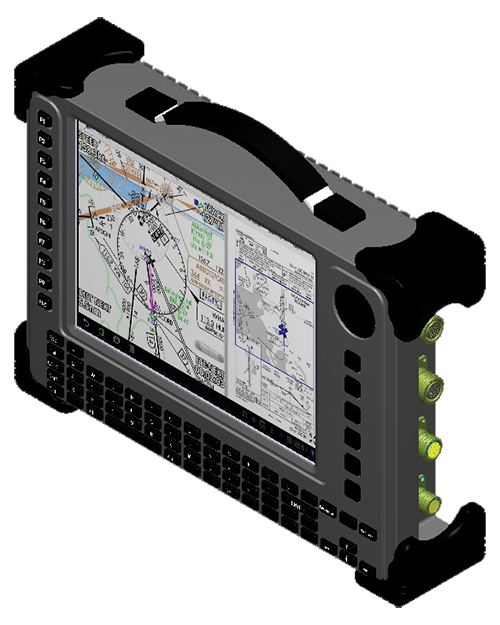

FRT-104: 10.4” Rugged Tablet
For Ground Based Field Operations DOWNLOAD

SPECIFICATIONS :
»  Single board computer with 5th Generation Intel Core i7-5650U CPU
»  4 GB DDR-3L RAM expandable to 8 GB
»  4 x RS 232, 1 x RS232/RS422/RS485
»  4 x USB 2.0, 2 x USB 3.0
»  2 x SATA 3.0 with RAID 0,1 support
»  Built-in RTC
»  Programmable 8 bit GPIO
»  On-board dual Giga LAN port via i210-AT and i218-LM
»  Built-in watch dog timer
»  User expansion capability via 2 x MiniPCIe slots
»  On-board HD Audio via ALC 888
»  10.4" LCD Display with 1024 x 768 LCD resolution
»  16.7 Mio Colors
»  Pixel pitch: 0.2055mm(H) x 0.2055mm (V)
»  Brightness: 700 Cd/m2
»  Viewing Angle: L/R ± 850, U/D ± 850
»  1 x 64 GB solid state drive
»  Power Input: 19~36V DC input (Nominal 28V)
»  Windows embedded standard WES-7 OS
»  Built-in Li-ION smart battery with level-3 charger
»  18 Keys on the front panel arranged as 5 keys on left and right and 8 keys at the bottom
»  Programmable protocol for the keys with RS 422/RS 232 output
»  MIL-C-38999 connector for Power, Ethernet & USB
»  Weight: Approx. 3.5 Kgs (Not exceeding 4.0 Kgs)
»  Size: 285mm x 228 x 75mm (not considering corner bumpers)

Environmental Specifications :
»  Operational Temperature : -20° C to +55° C
»   Storage temperature : -30° C to +70° C
»   Humidity: 95% RH at 40° C
»   Vibration: 2g, 10 to 500 Hz
»   Shock: 20 g, 11 msec
»   EMI/EMC: As per ML 461F)
