INHOUSE TEST FACILITY
INHOUSE TEST FACILITY

SPECTRUM ENVIRONMENTAL TEST LAB
FUTURA AUTOMATION has set up advanced environmental test facilities in-house for carrying outenvironmental tests on products designed and manufactured in-house. This facility is now available for externalcustomers to carry out tests on their products.
The following test facilities are available :

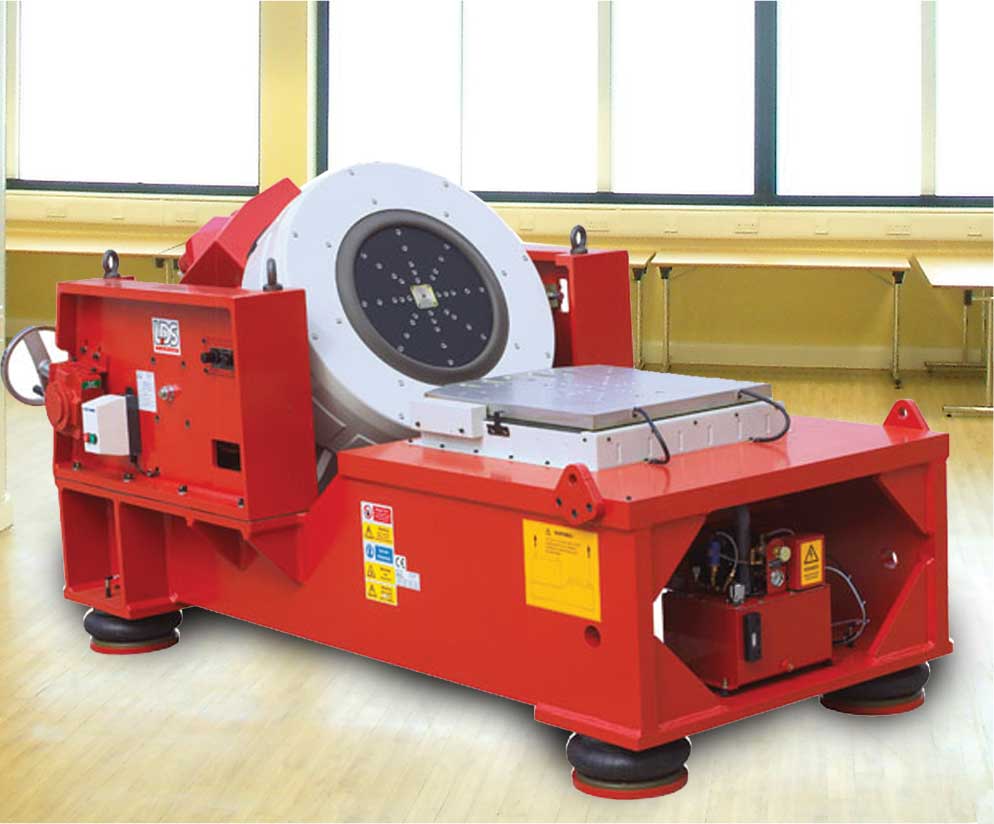

vibration and shock testing

Vibration And Shock Testing

VIBRATION TEST :( X, Y, Z AXIS BOTH SINUSOIDAL & RANDOM VIBRATION) : As per MIL-STD 810G/F, JSS55555, MIL_HDBK-781 & US Tri-services technical brief 002-92-08 and MIL167-1A.
»  Slip Table size 900 X 900mm (for X & Y Axis).b)Head Expander size 1000 X1000 mm for Z Axis.

SHOCK TEST ( X, Y & Z AXIS) : As per MIL-STD 810G/F, JSS 55555,MIL_HDBK-781 & US Tri-servicestechnical brief 002-92-08 and MIL167-1A.
»  Slip Table size 900 X 900mm ( for X & Y Axis)b)Head Expander size 1000 X1000 mm for Z Axis.

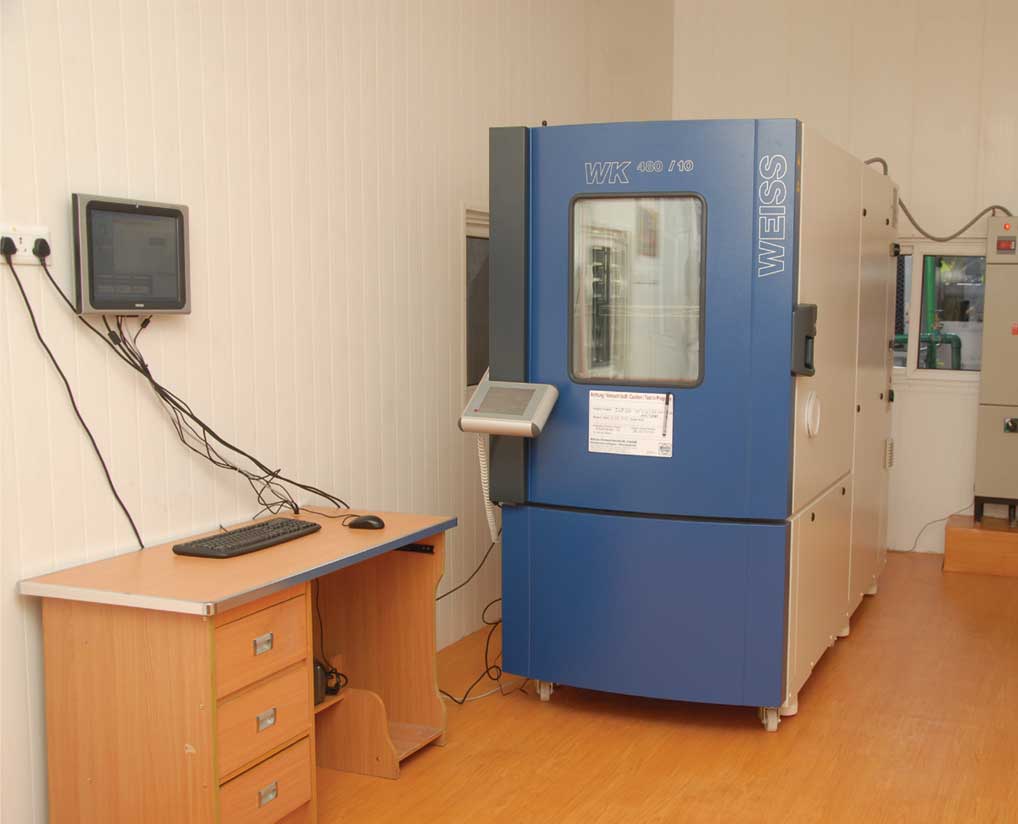

Climatic Testing

Temperature test:
»  Low temperature ( Up to -70oC) As per MIL-STD 810G/F and JSS 55555
»  High Temperature (Up to +180oC) As per MIL-STD 810G/F and JSS 55555
»  Thermal Cycle ( -70oC to +180oC) with up to 10oC Ramp Rate/Minute As per MIL-STD 810G/F and JSS 55555.
Note: Test specimen dimension is 920 X 800 X 650 mm

Humidity Test:
»  10 to 95% RH at constant temperature (Non condensing test) as per JSS 55555.
Note: Test specimen dimension is 920 X 800 X650 mm

Combined Temperature - Humidity Cycle Test: Combined Temperature - Humidity Cycles (Condensing tests) as per MIL-STD 810F/Ga)10 to 95% RH (From 20oC to 95oC).
ESS Thermal cycling test: ESS Thermal cycling test as per MIL_HDBK-781 & US Tri-services technical brief 002-92-08.
climatic testing

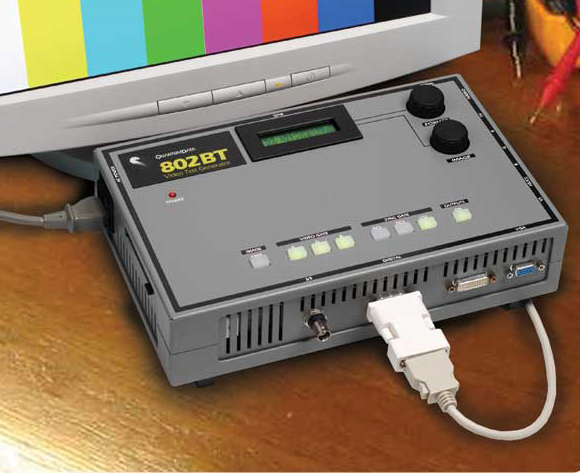

VIDEO TEST PATTERN GENERATOR

video test pattern generator

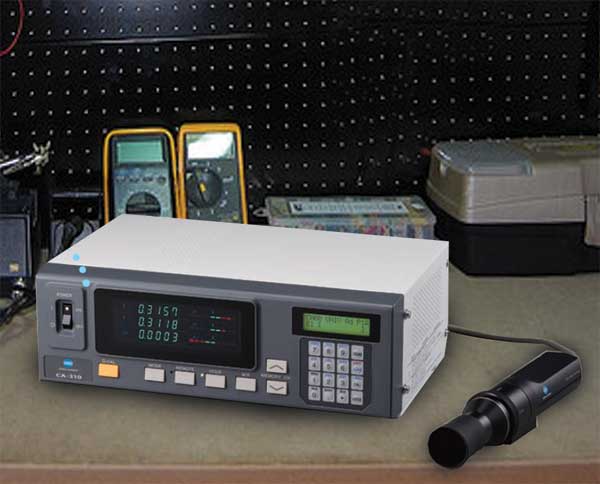

DISPLAY COLOUR ANALYZER

display colour analyser

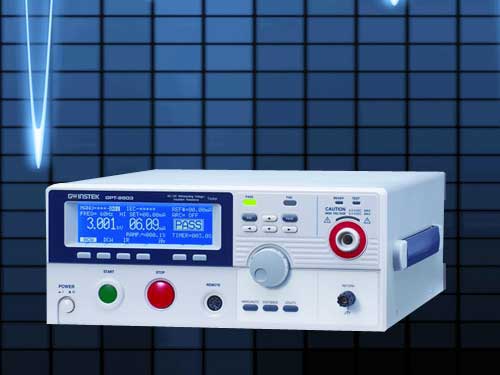

ELECTRICAL SAFETY TESTER

electric tester

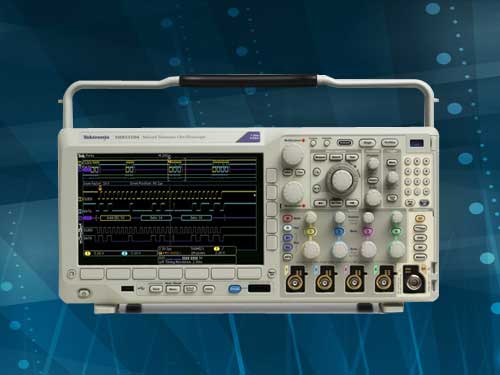

MIXED DOMAIN OSCILLOSCOPE

mixed domain oscilloscope
