RUGGED DISPLAYS

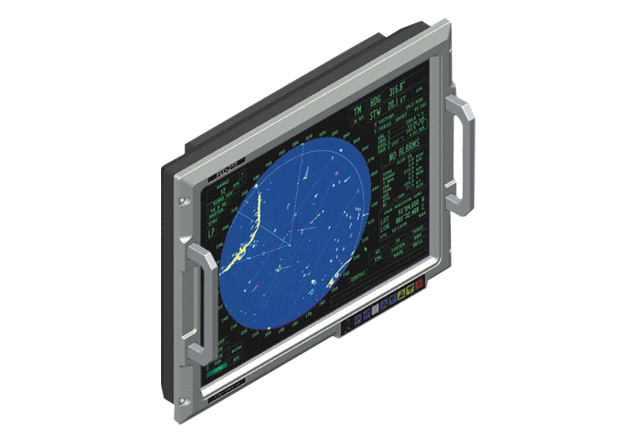

FLD 201 DOWNLOAD

SPECIFICATIONS :
»  20.1” UXGA (1600 x 1200) LCD Display with OSD Membrane type key built
    on front panel (Optional Screen Size :18.1”, 19.0” and 21.3”)
»  Front Aluminium machined plate for excellent aesthetics.
»  Standard 15 pin Hi-Density D-Sub or BNC type R, G, B Inputs.
»  DVI-D, Composite Sync, Separate Sync, sync on Green Inputs.
»  Input Signal – Video: interlaced Video : NTSC, PAL/SECAM image
   Scaling-Scale up/down a lower/higher resolution image to fit a higher/lower resolution panel
   E.g. SVGA up to SXGA or SXGA down to XGA ect.
»  Picture in Picture – Video (Pal/NTSC) display overlay on PC Background
»  Image Control & System stat us lia serial link.
»  Meets MIL-STD 810 Environmental test Standards and MIL461 C EMI Standards
»  Operating Temperature : 0oC-50oC (Optional – 20oC – 55oC)
»  Storage temperature : 20oC -+60o C
»  Humidity : 90% RH Non- Condensing at 40oC
»  Vibration (Non/Operating) : 6 ~ 8 Hz, 6mm constant Displacement, 1.5G Peak Acceleration, 9 ~ 500Hz
»  Dimension (Overall) : 482.6mm(W) x 153.0mm(D) x 300.2mm(H)

APPLICATIONS
»  Wide Range of Applications for Larger Screen LCD Display in Military/Industrial Environments
