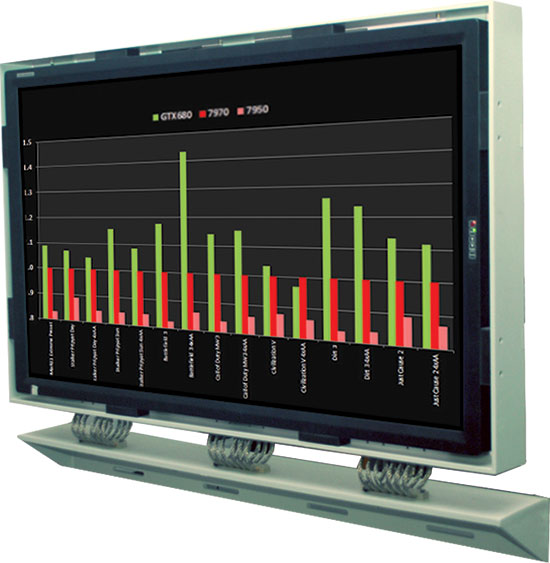

FLD 650: Large Screen Display DOWNLOAD

SPECIFICATIONS :
»  Color Flat Panel Display
»  Active Screen : 65.0” Diagonal
»  Active Display Area : 1428.48 mm (H) x 803.52 mm (V)
»  Resolution : 1920 x1080 /16:9
»  Viewing Angle : +/-890 (V&H)
»  Pixel Pitch : 0.744mm (H) x 0.744mm (V) (Panel meets pixel defect guidelines as per ISO 13406-2)
»  Number of Colors: 1073.7M ( 10 bit/color)
»  Pixel Arrangement : R, G, B Vertical Stripe
»  Brightness (cd/m2): 500
»  Contrast Ratio: 5000:1
»  Inputs Signal :
    • Analog RGB ( separate H/V sync or Composite Sync)
    • DVI-D
»  Input Resolution : Horizontal : 31Khz~80khz
    • Vertical : 55Hz~75Hz
    • Active : VGA~WUXGA
»  On screen Display (OSD) menu for controlling the display parameters.
»  Wire rope shock isolators to mount the monitor for wall mounting applications


Environmental Specifications :
»  High Temperature : +45°C
»  Low Temperature : 0°C
»  Storage temperature : 0°C to +70°C
»  Humidity : 95% RH Non condensing @ 40°C
»  Vibration : As per MIL-STD-167-1A (or) MIL-STD-810F
    • Shock: 15G, 6m/sec half sine, six shocks in X/-X, Y/-Y & Z/-Z direction
»  Power Supply Input : 115V/ 230 V , 50 Hz
»  Power Consumption : 230~240W
»  EMI : Meets EMI/EMC as per MIL 461F
»  Protection : IP 24
»  Weight : 130 Kgs ±5% Approx for
»  Display with mounting frames and shock isolators
