WS 715 DOWNLOAD

SPECIFICATIONS :

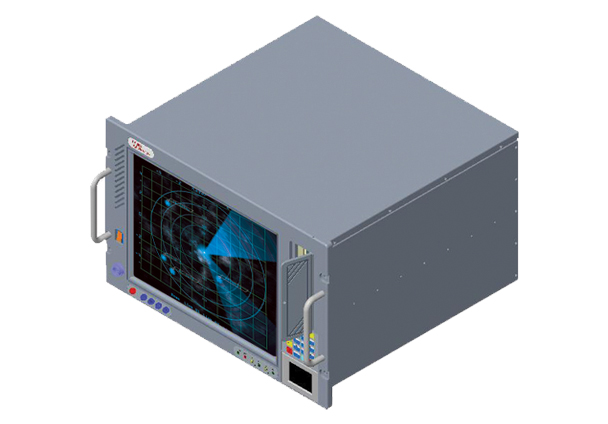

»  Smallest Full Function 15” LCD Workstation in the WORLD – Only 7U in Height (7U=310mm).
»  Desktop/Rack Mountable (Provision for 19” Rack Mounting with special mounting arrangements).
»  Based on the latest version of Single Board Computer.
»  Built-in CDROM Drive. Optional DVD Drive Lieu.
»  Built-in Floppy Drive and Hard Disk, fully shock isolated.
»  Built-in 14 Slot ISA/PCI Back plane in various combinations of ISA & PCI Slots
    to give ample space for full size user Add-on Cards.
»  Built-in Wide Viewing Angle 15” TFT Color LCD, supports 1024 x 768 x 16 million colors.
»  Space for custom user interface like Data Acquisition Unit/Telex/Tele-Printer Interface unit in separate removable tray.
»   Built-in Touch Pad on the front panel.
»   Meets MIL-STD 810 Environmental Test standards.
»   Built-in 16Key custom membrane keypad on front panel.
»   Protective Poly - Carbonate front sheet-GE-Margard or equivalent with conductive Coating for reduced EMI emission.
»   All Add-on cards have an Anti-Vibration Card Clamp for high Vibration environments.
»   Operating Temperature: 0°C to 55°C.
»   Operating Humidity: 95% RH Non-Condensing at 40^oC.
»   Vibration: 6-8Hz 6mm. Constant Displacement. 1.5G Peak Acceleration, 9-500Hz
»   Dimension (Overall) : 482.6mm (W) x 439.0mm (D) x 310.0mm (H)

APPLICATIONS
»  Wide Range of Harsh Environment Applications in Military/Industrial Environments.
