Midget CDU DOWNLOAD

SPECIFICATIONS :

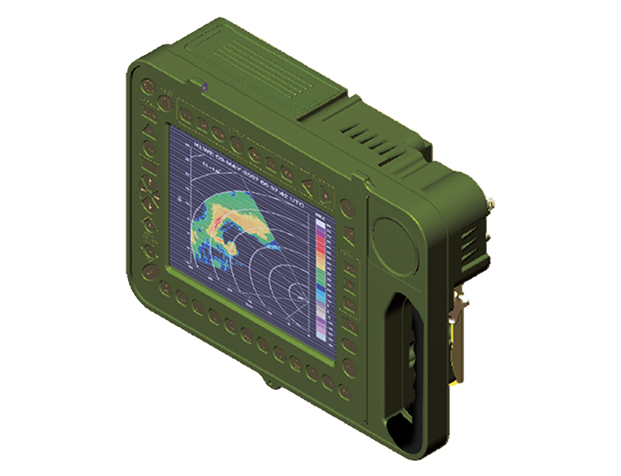

»  Compact Portable Computer with Built in 10.4” SVGA (800x600) LCD for Command ,
    Control & Communication Applications
»  10.4” LCD with resolution of 800 x 600
»  Luminance : 230 Nits
»  Contrast Ratio : 500 : 1
»  Response Time : 10 ms
»  Viewing Angle : 120 (H) , 100 (V)
»  40 Piezo Electric Backlit Keys for low ambient light applications around the display
»  Intel ULV Celeron Processor @ 1 Ghz or above
»  2nd Cache Memory : 512 KB
»  System Chipset : Intel 852GM +ICH4
»  BIOS : AMI BIOS
»  System Memory : 256 MB expandable upto 1 GB
»  Ethernet : Dual Realtek RTL8110SC Gbe chipsets
»  I/O Interface : 4 x USB 2.0
»  1 x EIDE
»  1 x CF
»  1 x KN/MS
»  5 x RS 232
»  1 x RS-232/422/485
»  Audio : Realtek ALC655 with AC’97 codec
»  Display Graphics Controller : VGA integrated in Intel 852GM , 18 bit dual channel LVDS
»  Watch Dog Timer
»  Built in 2.5” Note Book Hard Disk Drive of 40 GB Capacity
»  MIL-C38999 Connectors for all other I/Os
»  All-internal sub-assemblies mounted on shock isolators
»  Built in Touch Pad
»  24V DC Power Input
»  Standard D-Sub Connectors behind a concealed hatch for Lab applications
»  Light Weight Aluminium Alloy Chassis
»  Operating temperature : -20º~ + 50º C
»  Operating Humidity : 95% RH Non-Condensing @ 40ºC
»  Vibration : 6~8 Hz ?6mm Constant Displacement
»  1.5G Peak Acceleration m 9~500 Hz
»  EMI/EMC : As per MIL 461E
