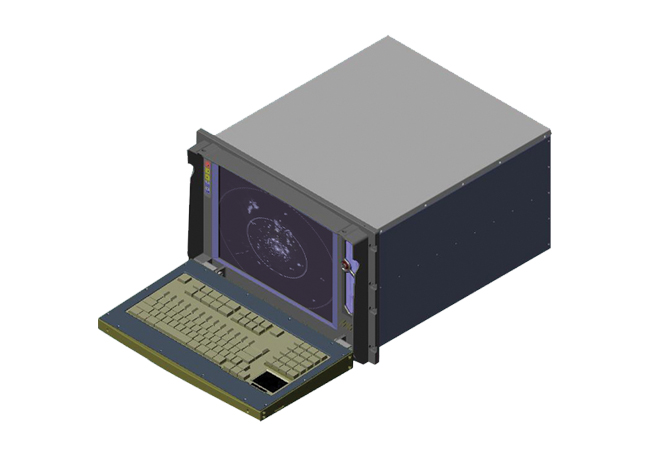

» Smallest Full Function 15” LCD Workstation – Only 7U in Height (7U = 310mm)
» Desktop/Rack Mountable (Provision for 19” Rack Mounting with Special mounting arrangements
» Based on Industrial Grade Pentium-IV or Pentium-III Single Board Computer.
» Built-in CDROM Drive. Optional DVD Drive in lieu. Built-in Floppy Drive and Hard Disk, fully shock isolated.
» Built-in 14 Slot ISA/PCI Back plane in various combinations of ISA & PCI Slots to give ample space for
full size user Add-on Cards.
» Built-in Wide Viewing Angle 15” TFT Color LCD, supports 1024 x 768 x 16 million colors. Space for
custom user interface like Data Acquisition Unit/Telex/Tele-Printer Interface unit in separate removable tray.
» MIL-C38999 Series III for I/O (or MIL-C26482G Series II Connectors or Standard D-Sub Connectors Optional in lieu)
» Rugged Keyboard with built in Touch Pad
» Meets MIL-STD 810 Environmental Test standards.
» Protective Poly- Carbonate front sheet-GE-Margard or equivalent with conductive Coating for reduced EMI emission.
» All Add-on cards have an Anti-Vibration Card Clamp for high Vibration environments.
» Operating Temperature: 0o
C to 50o
» Operating Humidity: 95% RH Non-Condensing at 40o
» Vibration: 6-8Hz 6mm Constant Displacement. 1.5G Peak Acceleration, 9-500Hz
» Dimension (Overall) : 439.0mm (W) x 532.0mm (D) x 310.3mm (H)
» Wide Range of Harsh Environment Applications in Military/Industrial Environments.
