RUGGED MULTIFUNCTION DISPLAYS

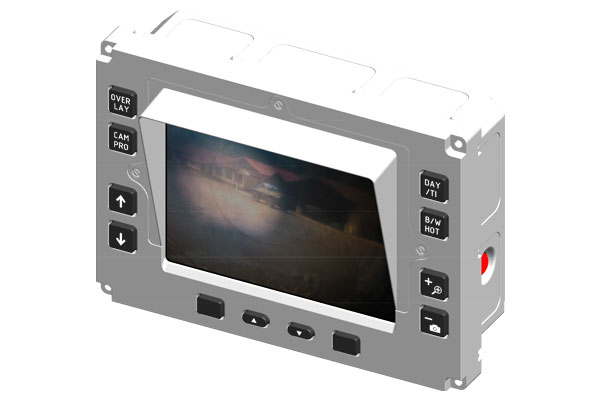

MFD - 065 DOWNLOAD

SPECIFICATIONS :
Intelligent Display features :
»  Display Size : 6.5 "
»  Display Resolution : 1024 x 768
»  No. of Colors : 16.7 m ( 8 bit/color)
»  Viewing Area :132.096 mm(H) x 99.072 mm (V)
»  Pixel Pitch : 0.129 mm(H) x 0.129 mm(V)
»  Pixel Arrangement : RGB Vertical stripe
»  Viewing Angle : Left/Right 80°/80°, Top 80°, Down 60°
»  Contrast Ratio : 500:1
»  Response Time : 25 ms
»  LCD Brightness : 500 cd/m2
»  Customised Programmable Function Keys + Brightness Control
»  Input Voltage: 24V DC ( 16~32V DC Range, Meets MIL-STD-1275D) through MIL-C-38999 connector.
»  Sealing: IP65
»  Processor: Embedded Intel® i5-5350U CPU
»  RAM: 1 x DDR3L 1333/1600 SO-DIMM up to 8GB
»  Graphics: Intel HD graphics 6000 with support for Open GL 4.3 /Direct X 11.2 /Open CL 2.0
»  Ethernet Port: 1 x Intel® Gigabit LAN (Available inside)
»  Audio: 1 x Intel HD audio (Available inside)
»  Storage: 1 x 64 GB SSD
»  USB: 1 x USB2.0 (Three more ports are available internally -only one port brought outside)
»  Serial port: 2 x RS232
»  Video Capture: 2 channel PAL video capture.
»  Front panel key switches: 10 front panel keys for user interface
»  ATX ON/OFF Switch on right side.
»  keypad backlight switched off /on by pressing brightness up & down keys simultaneously
»  Power input: 18 to 36 Volts DC input
»  Operating system: Embedded WES 7 or Linux as required by L & T
»   Interface: MIL-C-38999 III Series connctor
»  1 x DC PWR input.
»  1 x DC PWR output.
»  2 x RS232.
»  2 x PAL video.
»  1x Ethernet channel
»  1x USB channel

»  MATERIAL: Machined Aluminium alloy-6443
»  All fastners: SS 304 Passivated.
»  POWDER COATED SIGNAL WHITE RAL 9003
»  Clear Alodine conversion (MIL-C-5541F)for inside surfaces & parts .
»  All legends & markings: Laser engraving
