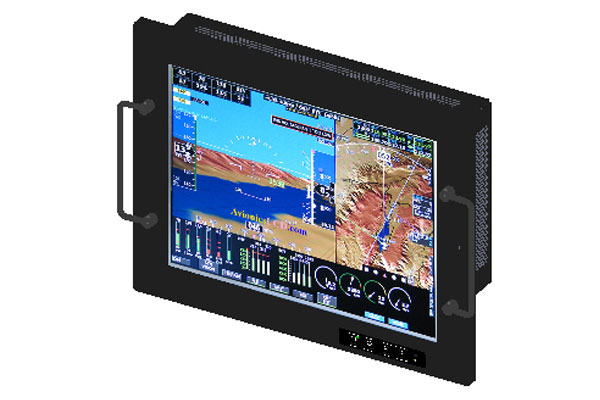

RWS 150: 15" Rugged Panel PC DOWNLOAD

SPECIFICATIONS :
»  Micro-ATX Mother Board supports 22nm LGA 1150 Intel Core i7/i5/i3 Processor.
»  System Chipset : Intel Q87 or better
»  System Memory : 4 x DDRIII SO-DIMM 1066/1333/1600 Mhz up to 32GB
»  Ethernet : GbE1 : Intel i217LM with Intel AMT 9.0 support, GbE2 : Intel i210-AT PCIe controller with NCSI support

I/O Interface :
»  5 x RS-232
»  1 x RS-422/485
»  4 x USB 2.0
»  4 x USB 3.0
»  4 x SATA 6Gb/s (RAID 0/1/5/10)
»  Audio : Realtek ALC662 HD codec
»  Graphic Engine : Intel HD Graphics 7.5 supports DX11.1 and Open CL 1.2 , Open GL 3.2
    Full MPEG2 , VC1 , AVC Decode

Display Output :
»  VGA upto 1920x1200 @ 60Hz
»  DVI-D upto 2560x1600 @ 60Hz
»  HDMI upto 2560x1600@ 60 Hz

Watchdog Timer :
»  Software programmable supports 1~255 sec system reset

Display :
»  Built in 15” Analog TFT XGA (1024 x 768) LCD Display with LED Backlighting
»  Touch Screen : Resistive
»  Viewing angle : 1600 (H) and 1300 (V)
»  Contract Ratio : 700 : 1
»  Brightness : 350Cd/m2

Installed Configuration :
»  1 x Intel Core i5 Processor @ 2.5 Ghz or above
»  1 x 4GB Extended Temperature DDRIII RAM
»  1 x 256 GB Shock Isolated Extended Temperature MLC Flash Disk Drive
»  1 x External Keyboard with inbuilt pointing device
»  1 x Windows 7 Operating System with media and manual


Environmental Specification
»  Operating temperature : -20° ~ +55° C
»  Storage temperature: -30°~+70°C
»  Humidity : 95% RH Non-Condensing @ 40° C
»  Vibration (Non Operating) : 5to 47 Hz ± 0.015” Constant Displacement
    47Hz ~ 2Khz, 1.5 G Constant Acceleration
»  Protection : IP 65 on front face only
»  EMI/EMC : As per MIL-STD-461F
